REMOTE HEADS & GIMBALS

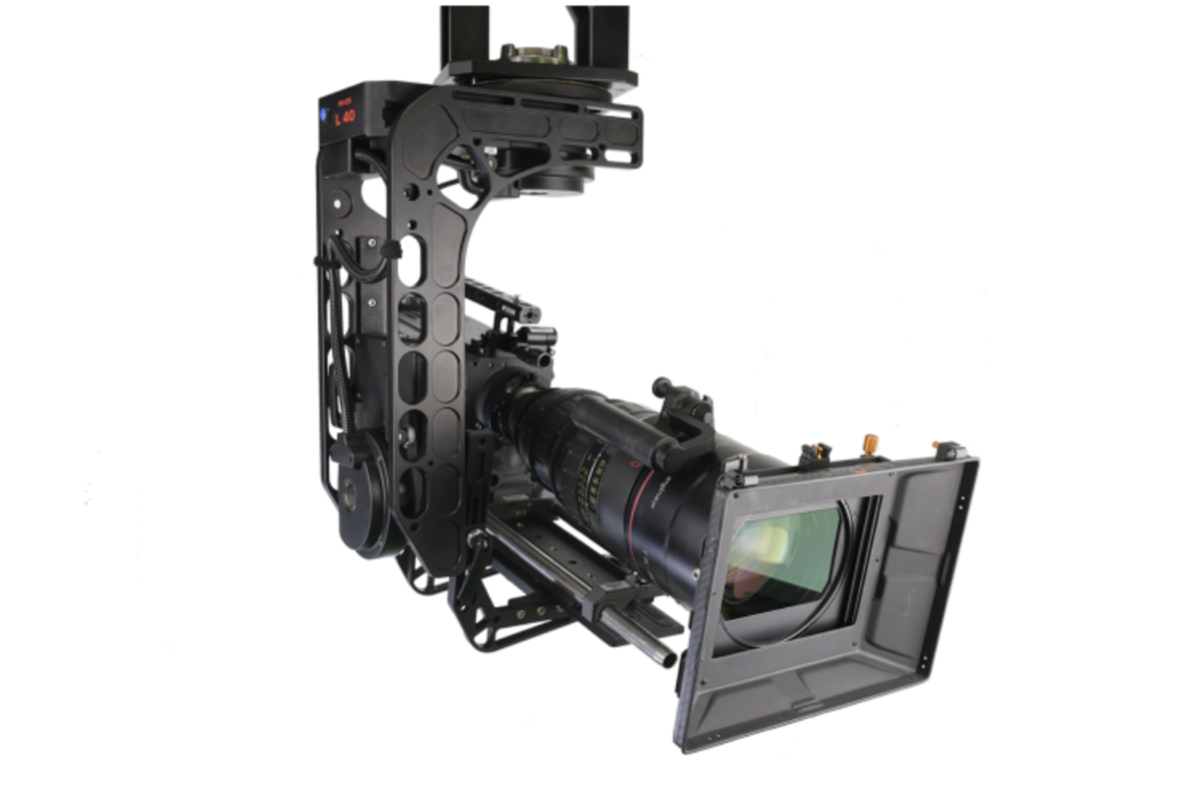

Mo-Sys L40

The Mo-Sys L40 remote head is a precise and lightweight, 2-axis remote head with zero backlash.

Its robust and powerful motors allow for rapid movement with even the heaviest payloads, making it ideal for high-end cinematography. The L40 accommodates a broad range of choices of camera and lens combinations. The remote head weighs 40 pounds and can support a max camera and lens payload over twice its weight, at 88 pounds.

The L40 has the same precision, and intuitive user interface as the Mo-Sys Lambda, just with stronger (and quieter) motors. With its digital backpan, the L40 is a great economical option for standard crane work.

Camera operators love the zero delay and zero backlash that allows for natural feeling replication of camera movements. The L40 is often used to make the combined camera and crane movements easier. An example of this is swinging a crane through an arc while simultaneously ensuring the camera is facing the plane of action from the start to the end of the arc movement.

The Mo-Sys L40 features is fast and easy to setup, with little technical knowledge. This means that a Camera Operator can set up and use it and doesn’t require a remote head technician on set. The pan and tilt options of the L-40 can be controlled by the pan-bar, handwheels, or joystick using a touch panel or a button console.

Also available with  3-ax.

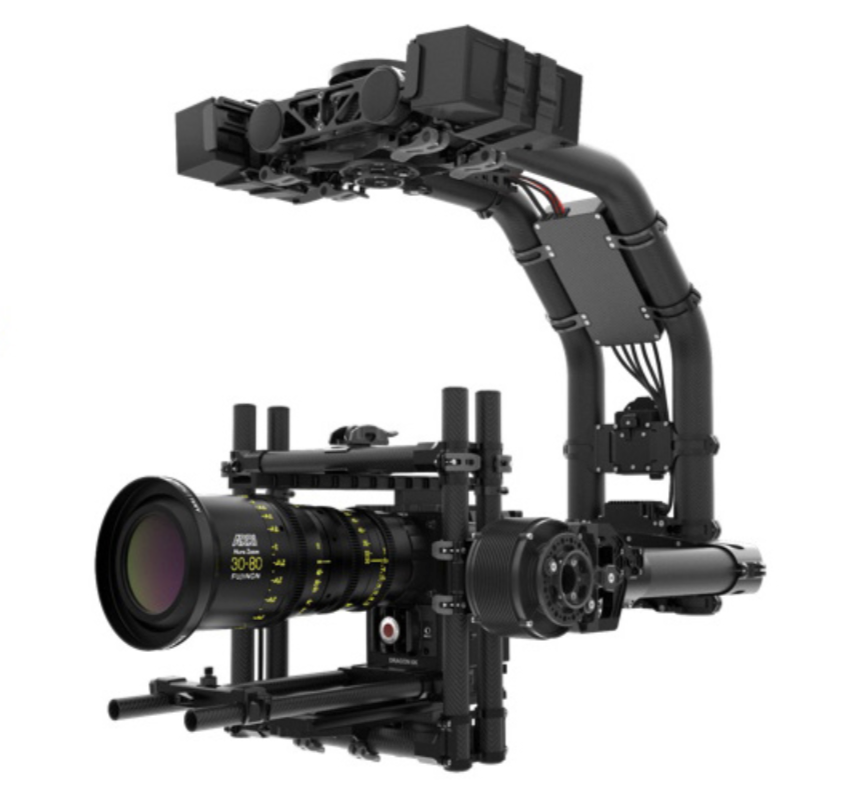

MōVi XL

The Mövi XL is a 3-axis stabilized gimbal that can take payloads up to 22kg.
Excellent to use on cranes or fixed mounted on any moving vehicle in combination with one of our shock absorbers.

  • Weight (w/o batteries)11.45 kg

    Camera cage dimensions399 mm (L) x 255 mm (W) x 289 mm (H

    )Max payload22.67 kg

    Mounting systemMitchell mount quick release

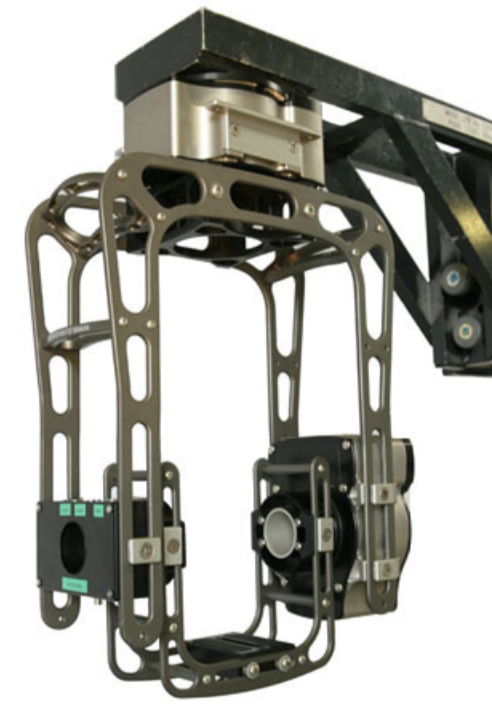

Mambo Head

This pan-tilt head is “the beast of burden” in our spectrum of heads. The Mambo is a Eurogrip manufactured remote head and can be fitted under just about any crane. This head proofs to be very reliable and robust though it is one of the lightest in his range. This head can be equipped whit a joystick or cranck wheels.

  • Remote head with 2 axesSuitable for Alexa-, Red- and filmcameras

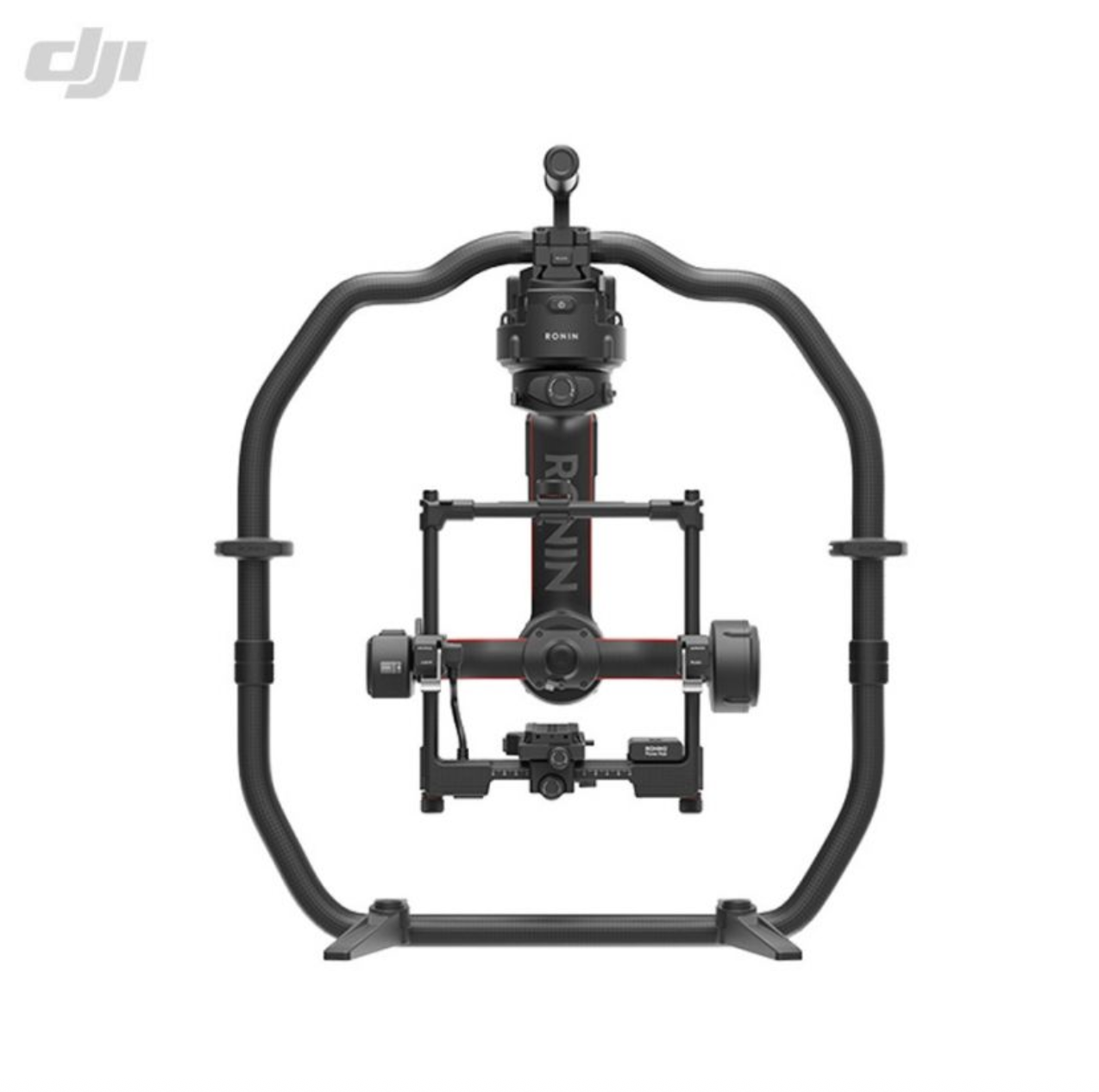

Ronin 2

Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

  • 2 Wheels steering or crabTrack-, pneumatic- or studiowheelsMin height73 cmMax height140 cmLiftrange67 cm in 3,5 secBatteriesOperational weight144 kgColumn lift force250 kg

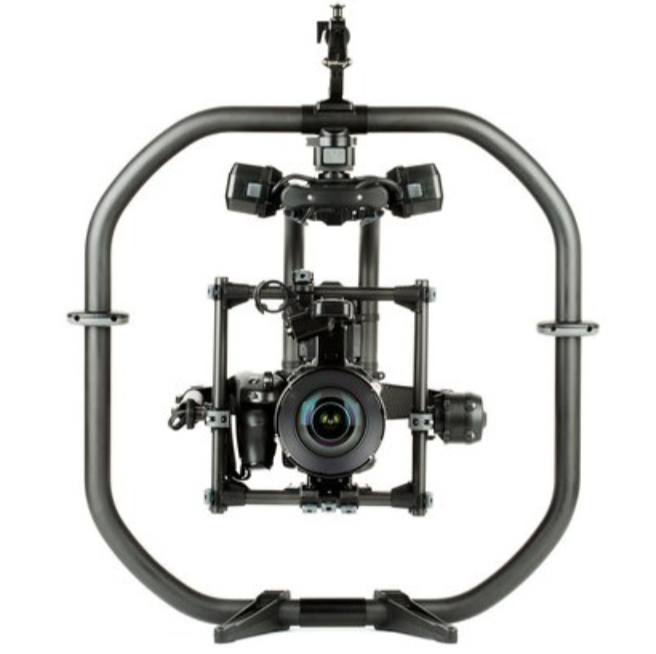

MōVi Pro

The Mövi Pro is a 3-axis gimbal that can take up to 6,8kg.
This gimbal can be used to walk around, even in narrow places such as staircases, or to pass it through small windows. It can also be mounted on cranes and be fixed mounted on cars, boats or any moving vehicle.

  • Weight (w/o batteries)2.65 kg

    Camera cage dimensions196 mm (L) x 200 mm (W) x 175 mm (H)

    Max payload6.80 kg

    Mounting systemFreefly toad quick release

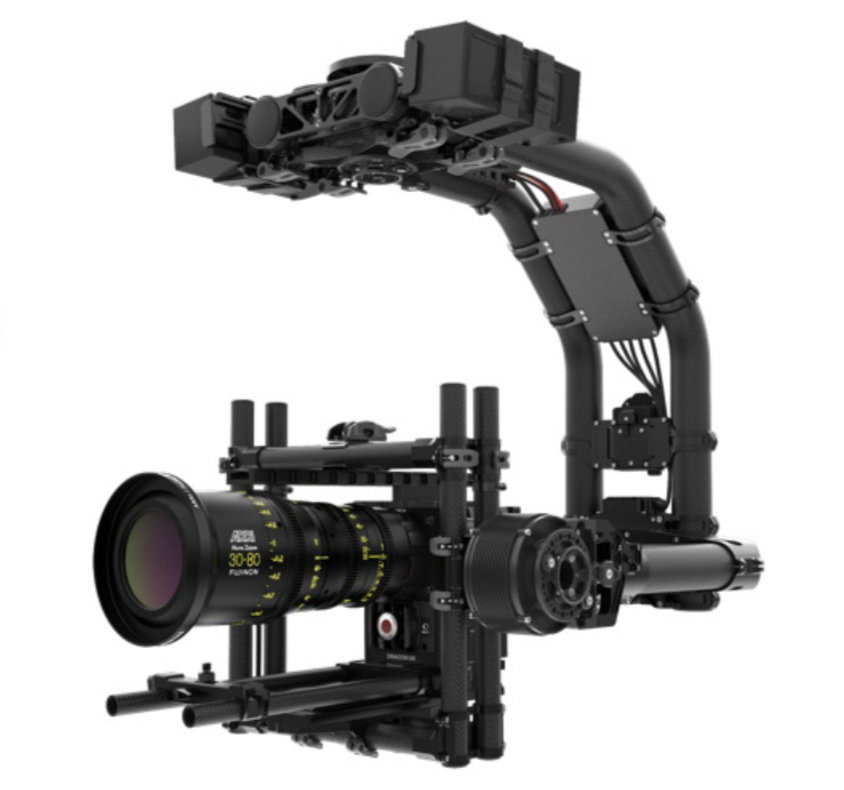

MōVi XL

The Mövi XL is a 3-axis stabilized gimbal that can take payloads up to 22kg.
Excellent to use on cranes or fixed mounted on any moving vehicle in combination with one of our shock absorbers.

  • Weight (w/o batteries)11.45 kg

    Camera cage dimensions399 mm (L) x 255 mm (W) x 289 mm (H)

    Max payload22.67 kg

    Mounting systemMitchell mount quick release
