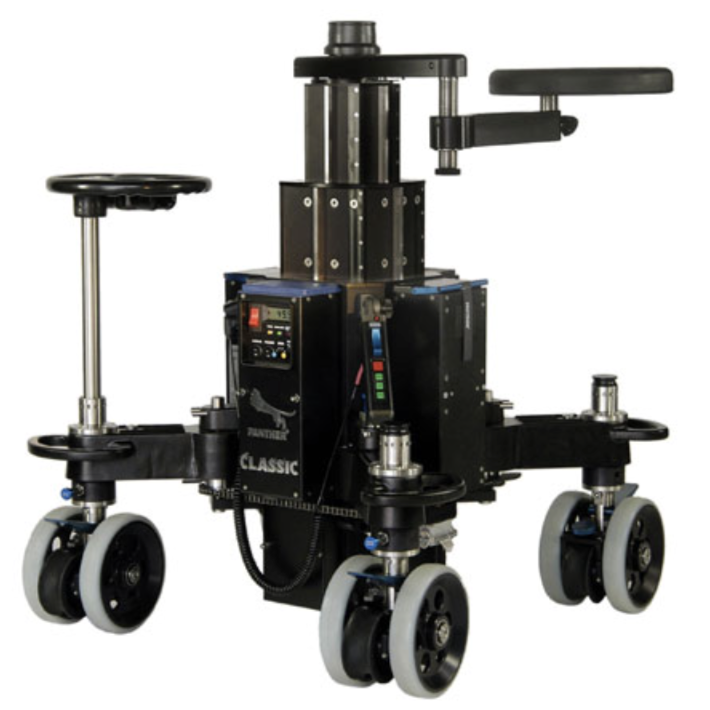

Panther Classic Dolly

The Panther Classic’s design concept is as simple as it is robust. This means longevity and practically maintenance-free operation. The electro-mechanical drive has proved itself over decades. It is not only quiet, but has also in practice shown itself to be extremely reliable and durable. As a result, the maintenance and repair costs and are very low.

The Classic in its basic model already has much to offer. With its CPU-controlled center column and its pivoting wheel arms, it can be easily adapted to many diverse shot angles. Together with the Panther Classic accessory program, you can realize almost any shot with only one dolly system.

  • 2 Wheels steering or crabTrack-, pneumatic- or studiowheelsMin height73 cmMax height140 cmLiftrange67 cm in 3,5 secBatteriesOperational weight144 kgColumn lift force250 kg

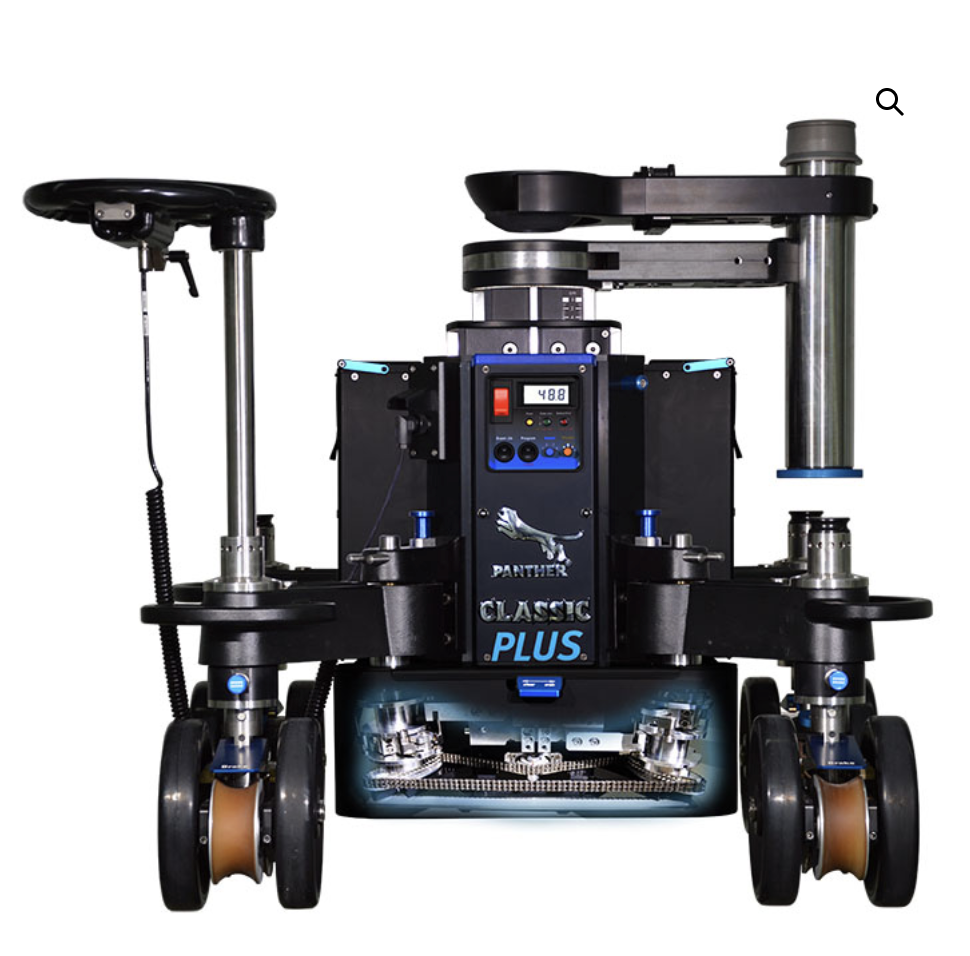

Panther Classic Plus Dolly

The Panther Classic Plus dolly is a compact dolly with a central, electronic driven column. The steering system allows to choose between crab or 2 wheel steering, placed in a steering geometry that allows turning 360° on the spot.

  • 2 Wheels steering or crabTrack-, pneumatic- or studiowheelsMin height 73 cm

    Max height140 cm

    Liftrange67 cm in 3,5 sec

    BatteriesOperational weight144 kg

    Column lift force250 kg

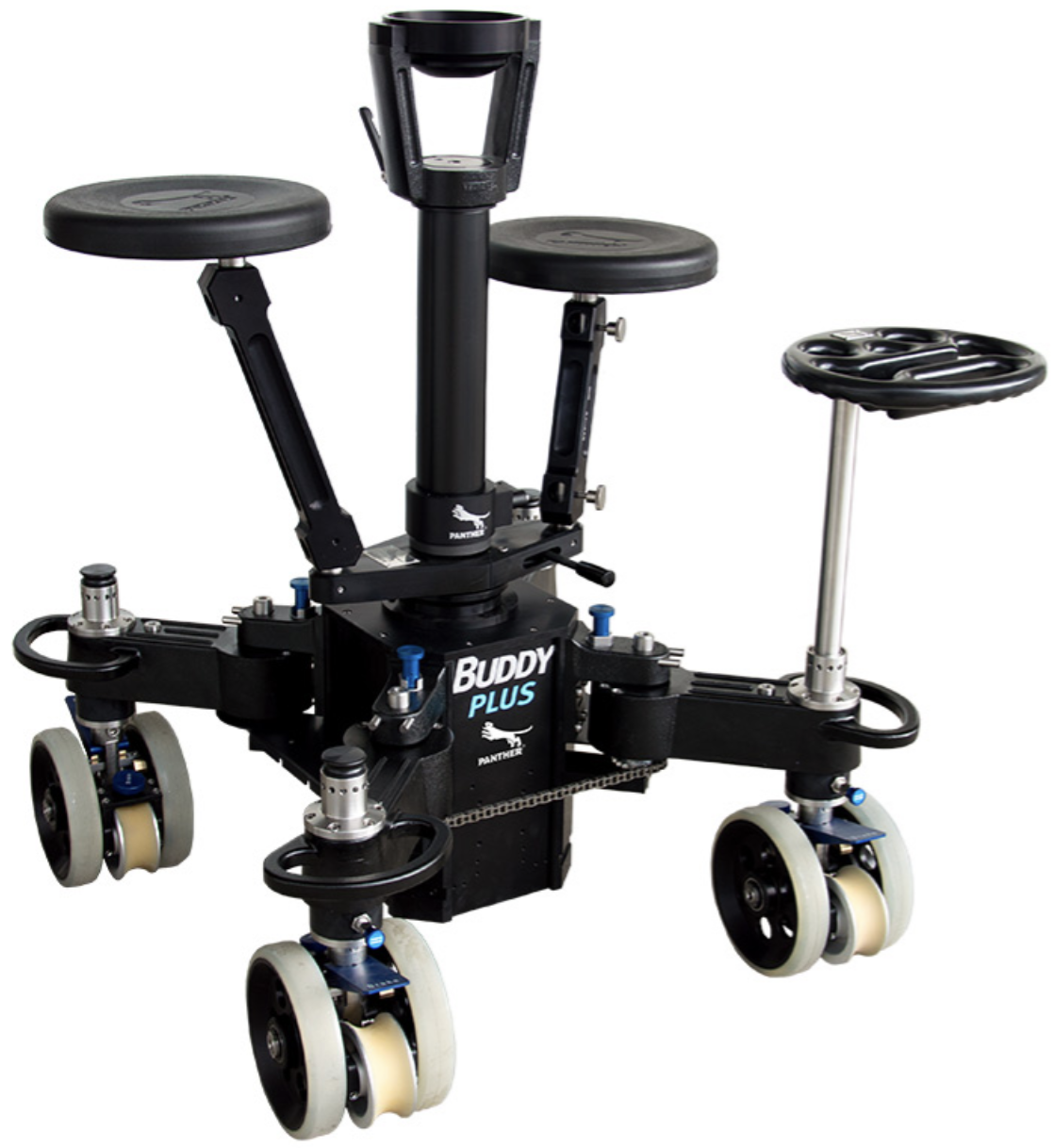

Panther Buddy Plus Dolly

The Buddy Plus dolly is a versatile Film and Video dolly. Compact measurements, extreme stability and variability will convince even demanding professionals.

  • Lenght84 cmMin width min53.5 cmMin width min82.5 cmTrack width narrow36 cmTrack width wide62 cmWheel base narrow75 cmWheel base wide62 cmGround clearance6 cmTurning circle1.97 mTransport weight59 kgPayload900 kg

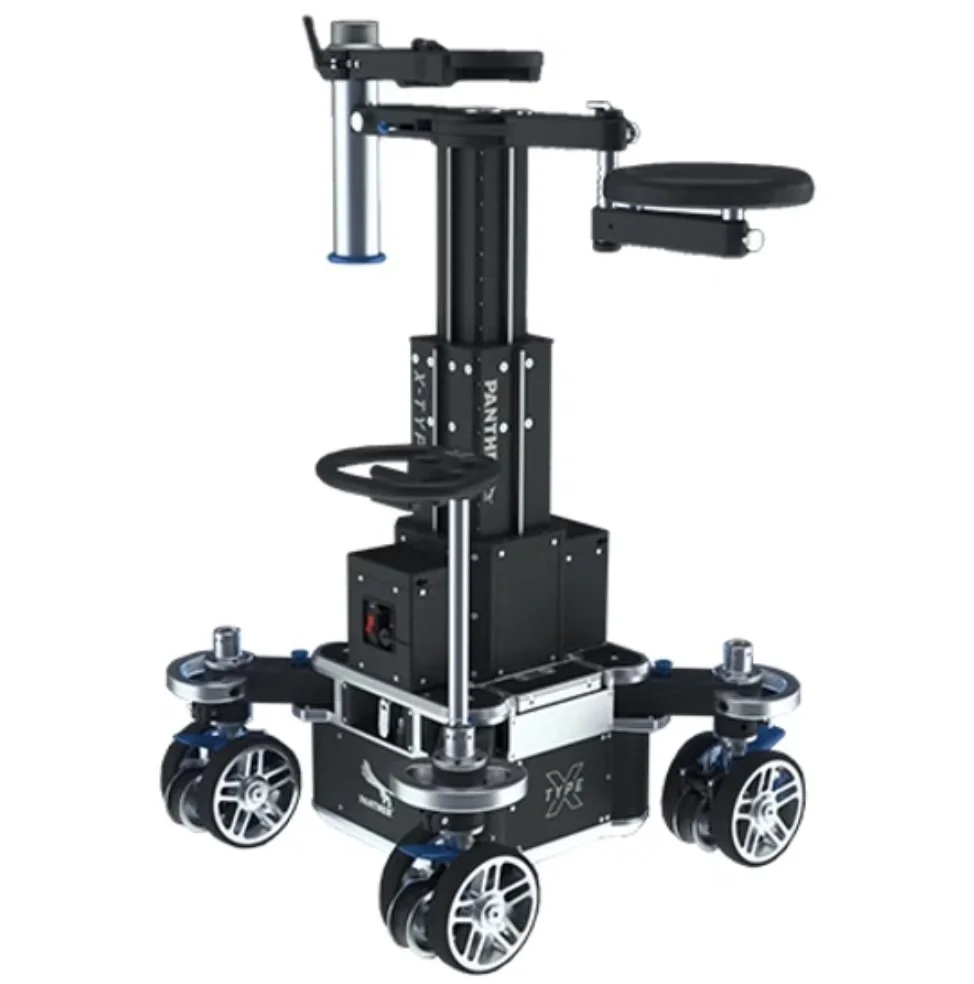

Panther X-Type

-Type DollyThe dolly has three steering modes in the basic version: CRAB, FRONT, REAR. Various wheel arm positions are adjustable. For the use of the X-Type Dolly as a Mini Base Dolly without column, a base plate with turnstile mount is available. X-Type ColumnThe Dolly column has a 360° rotatable High-Low-Turnstile for multiple use and can be detached from the base Dolly for easy transport. The batteries are mounted at the bottom of the column. This provides more legroom for the DOP. Furthermore a lower center of gravity of the Dolly is achieved and minimizes the risk of tipping over - thus increasing safety.

  • Length 82cm

    min. Width 52cm

    Max. Width 79cm

    Lift range 68cm

    Lift range with Range Extender 135cm

    Column transport weight §èkg

    Dolly transport weight 80kg

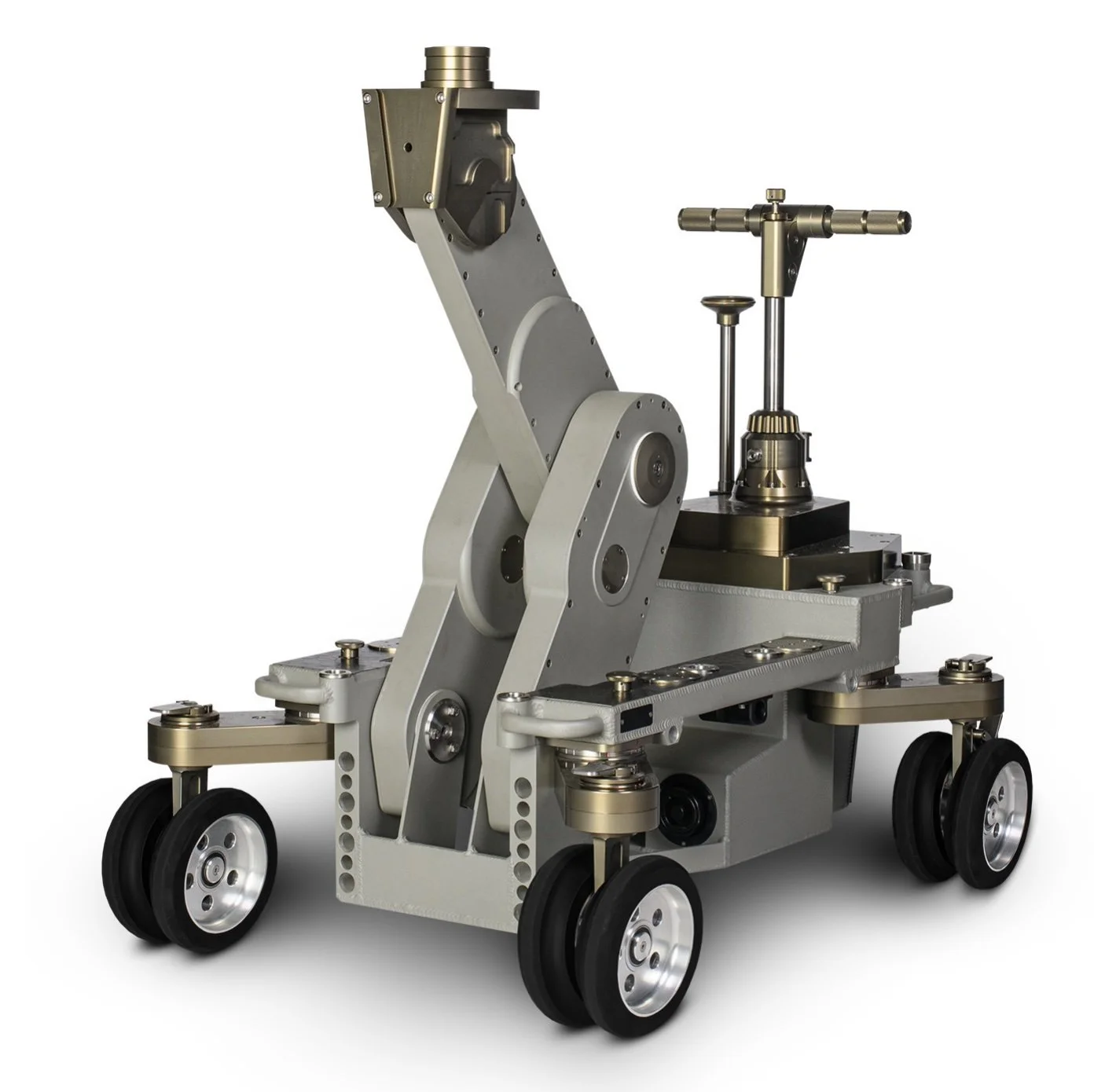

Super Falcon Dolly

The Falcon Dolly by Cinetech is a compact and versatile camera dolly, designed for smooth, professional camera movement both on location and in the studio. Thanks to its lightweight yet sturdy frame, the dolly sets up quickly and is easy to transport, making it ideal for film, video, and photo productions where flexibility and speed matter.

  • Max. Length 116cm

    Min. Lenght 52cm

    Max. Width 88cm

    Min Height 43cm

    Max Height 113cm

    Arm Travell 70cm

    Lifting Capacity 60kg

    Max Arm lifts 6

    Weight 149kg

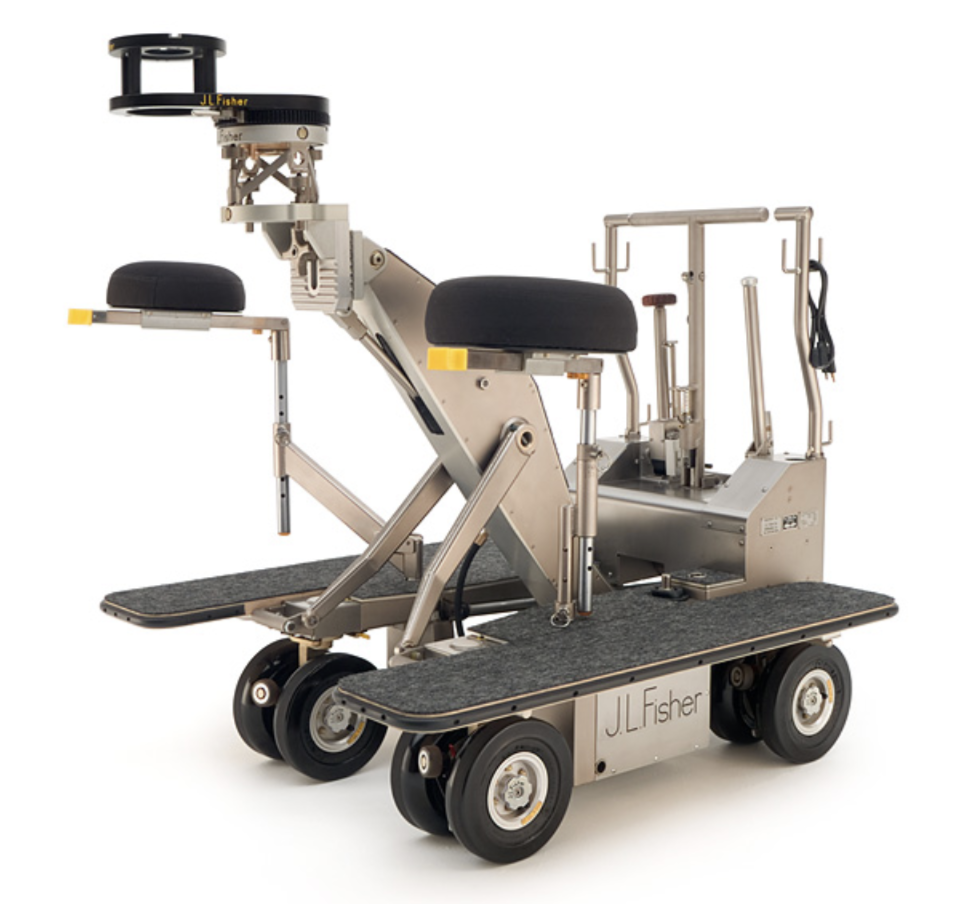

Fischer 11

The Model 11 is J.L. Fisher’s smallest Dolly. Lightweight and compact, it is built with the same
high quality standards found in all J.L. Fisher products. The Model 11 Dolly shares
the same controls and characteristics of the Model 10 Dolly and has a complete line of
its own accessories. It operates effortlessly on Square or Round Track, making the
Model 11 and Model 10 an excellent two dolly combination.

The Model 11 Dolly is engineered and manufactured to meet the demanding
production needs of the motion picture, television and video industries. Compact
size, three-way steering and a solid lift beam give operators a wide variety of options.
The reliable, quiet, smooth and safe Model 11 requires minimal maintenance.

  • Max lift beam elevation with SLE1 29.858 cm

    Min lift beam elevation with SLE34.925 cm

    Min lift beam elevation with LHE7.62 cm

    Vertical beam travel84.773 cm

    Lift beam capacity90.72 kgLength101.6 cm

    Width - Fully operational steering (wheels in)51.753 cm

    Width - Fully operational steering (wheels out)65.405 cm

    Height (operating)100.648 cm

    Height (folded)58.738 cm

    Minimum turn radius (round steering)41.116 cm

    Min turn radius (conventional steering)85.09 cm

    Carrying weight139.25 kg

    Max dolly load capacity408.23 kg

    Lifts per system charge7

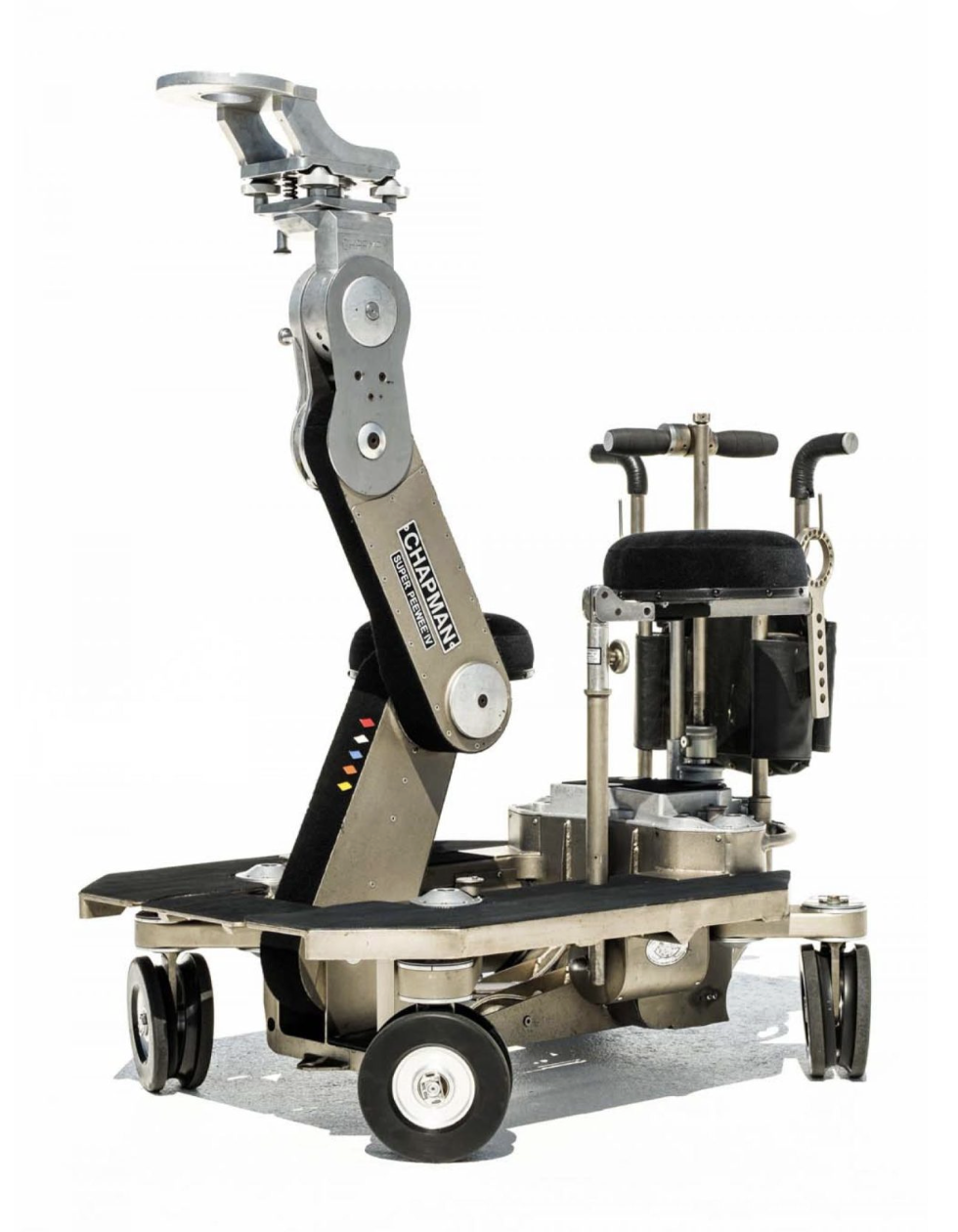

Chapman Peewee IV

The Chapman Peewee IV dolly is a pneumatic scissor dolly. Whit the smooth lift it can take a camera payload up to 144kg. The 3 way steering possibilities can move this dolly easily wherever you want it.

  • Max camera mount height (90° mode)1.53 cm

    Min camera mount height (90° mode)69 cm

    Vertical boom travel (90° mode)84 cm

    Max camera mount height (45° mode)1.48 m

    Min camera mount height (45° mode)66 cm

    Vertical boom travel (45° mode)84 cm

    Max camera mount height (low mode)1.3 m

    Min camera mount height (low mode)48 cm

    Vertical boom travel (low mode)84 cm

    Max camera mount height (extender mode)1.53 m

    Min camera mount height (extender mode)48 m

    Vertical boom travel (extender mode)1.05 m

    Min camera mount height (low bar/low 4-way leveling head)11 cm

    Max camera mount height (low bar/low 4-way leveling head)94 cm

    Chassis width - All legs at 0° (use in tight quarters)51 cm

    Chassis width - All legs at 10° (pneumatic or 880 mm pos)64 cm

    Chassis width - All legs at 45° (track pos)71 cm

    Chassis width - All legs at 70° (tread & wheel base equal)79 cm

    Chassis width - All legs at 84° (sideways or scissor pos)81 cm

    Chassis width - Front legs at 84°, rear at 0° (3 point med tire)81 cm

    Chassis width - Front legs at 84°, rear at 10° (3 Point Pneu)81 cm

    Chassis width - Front legs at 180°, rear at 0° (med tire)51 cm

    Chassis width - Front legs at 170°, rear at 10 degrees (compact pneu)64 cm

    Steering post height89 cm

    Min chassis length87.6 cm

    Max chassis length1.09 m

    Max payload with accumulator charge at 2.400 psi145 kg

    Max payload with accumulator charge at 2.600 psi159 kg

    Max payload with high post kit499 kg

    Max number of lifts on a single charge5 lifts

    Accumulator charging time (empty to full)50 sec

    Carrying weight134 kg

    Operational weight149 kg

    Operational weight with high post kit (no payload)175 kg

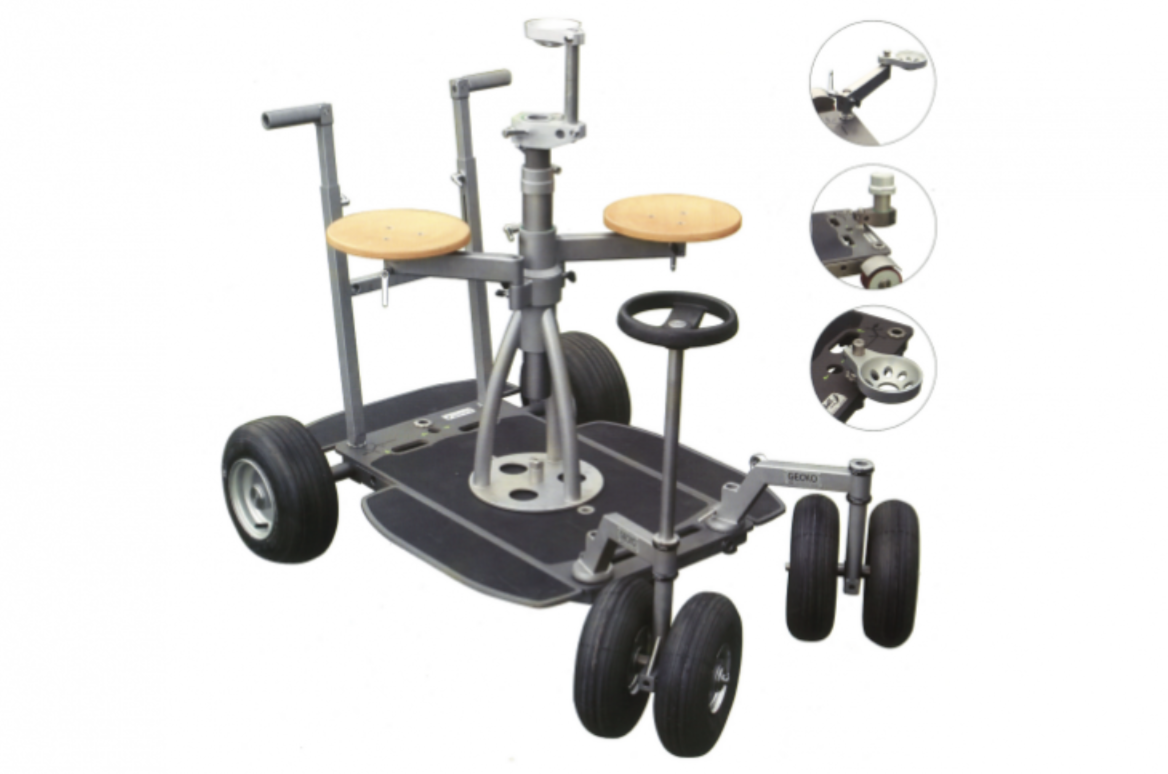

Gecko Dolly

The Gecko Dolly is made by Patrick De Coster. It can be put on a straight track or it can go in a 3 or 4 wheel configuration on high quality pneumatic wheels. Ideal for steadicam or gimbal shots.

  • Size 130 cm x 65 cm

Jackal Rickshaw

The Innovative Jackal Camera Rickshaw works best when you can’t lay a track but need to smoothly follow your subject. This lightweight and portable rickshaw is designed for use with gimbal, handheld, and Steadicam setups, which enables the operator to be pushed or pulled by a key grip to facilitate and smoothen complicated shots, especially over uneven terrain

  • Max Payload 150kg

    Incl set beach tires

3 Wheels Bazooka Dolly by KGS

This 3 wheel based Bazooka dolly is mostly used as a second camera dolly, can be mounted on a track, it’s also a great combination with one of the sliders.

  • Set hard wheels

    Set track wheels

PDC-Dolly

This is one of the most basic dollies, it can be used on straight or curved tracks, it provides plenty of space for a tripod.

  • Size 105 cm (L) x 80 cm (W) x 15 cm (H)

Twin Dolly

The TwinDolly is basically a hi hat / low bowl with wheels, in an effective design. Together with TwinTube it is comparative with the old school camrail. It has the same elements as a slider but it is definitely more versatile and extendable. It is a simple small dolly and track system for more heavy cameras such as a fully equipped Red or Alexa.

Truss Dolly

The TrussDollySystem is a very versatile system. It is a railing system used for horizontal, diagonal and vertical movement of the camera. You can either use the camera mounted on the Truss Dolly on top or underslung. With or without a remote head.

  • Travelling on trusses or triangle tracks.
